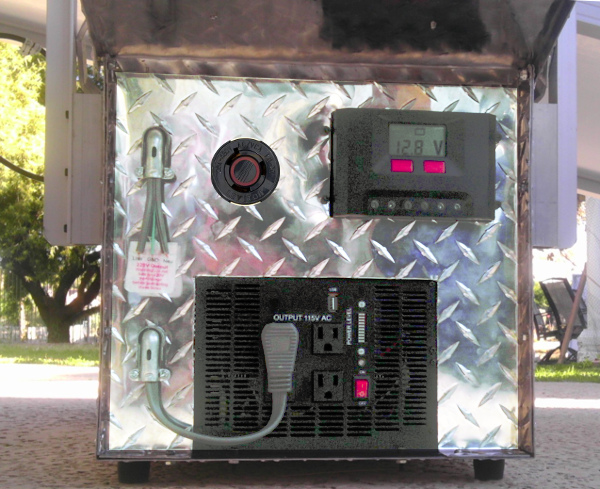

Model EP2522a with 110V Inverter,
Charge Controller, and 220V output.

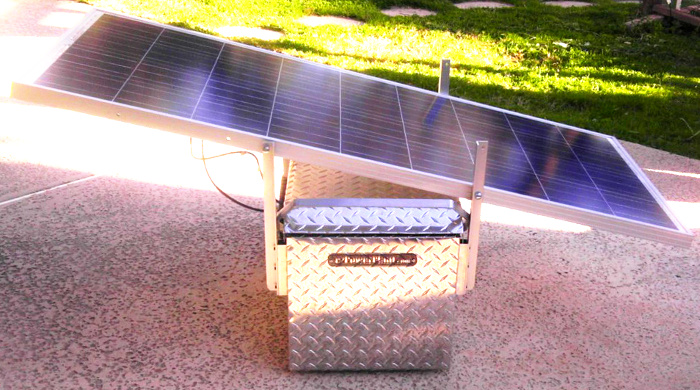

Front of Model EP2522a

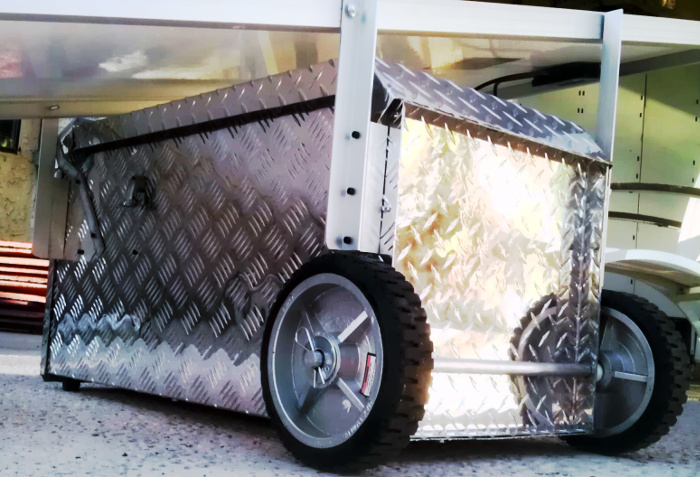

Back of Model EP2522a

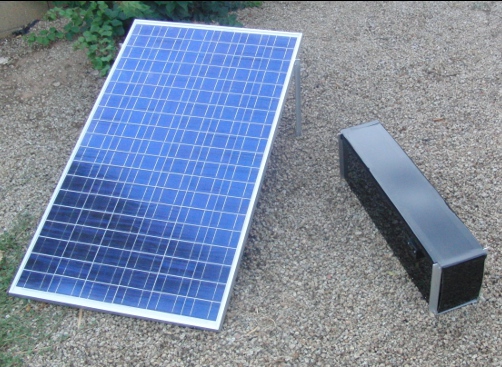

Solar Panel and ezPowerPlant
Model EP2522b above. Weather cover down
protecting power outlets and charger status

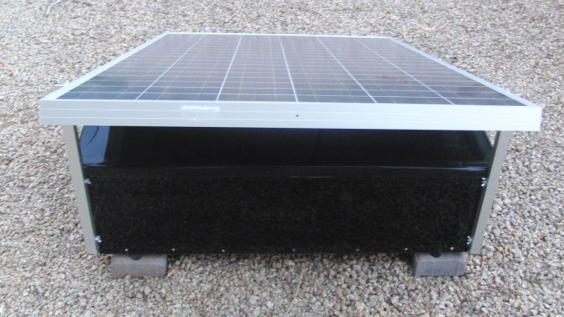

Back of Model EP2522b above. Rubber
feet sitting on bricks.

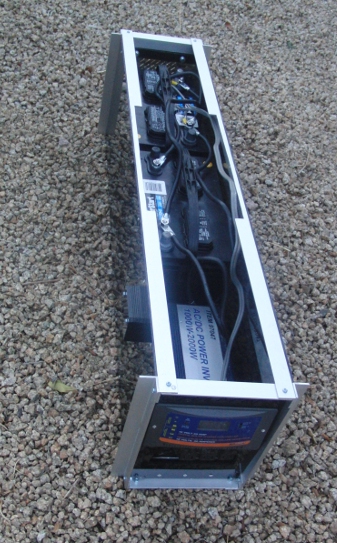

Internal of Model EP2522b above. Includes also solar battery charger and connectors.

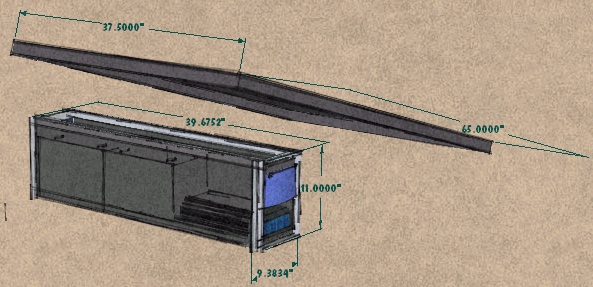

Diagram of Model EP2522ac with Dimensions above
ezPowerPlant Options
Option
Model
Details
Batteries
27DC
Each Battery holds over 1.3kWh of energy, equivalent to approximately half a gallon of gasoline in a standard generator.
Very Easy to find battery type for replacement
Lowest cost energy storage $/kWh
Battery Charger
1.5A Trickle
Keeps system always charged for non solar backups
Costs 1/12th to run an electric generator than a gasoline generator
Inverter
110-220V; 500-3000W,
Modified Sine Wave
Optional True Sine Wave
Optional 220V Output
Two year replacement warranty
Solar Panel
200W
Multicrystaline Solar Panel by Sun Technology
Twenty year warranty from panel manufacturer
Solar Charger
30A 24V
Automatically prevents overcharging
Battery Voltage and Current Display
Multimeter
12 Function
All units include a digital multimeter
Make quick measurements for easy troubleshooting
12V Outputs
3/8inch 500A
Chain multiple units together
Easy access for charging system with rapid charger

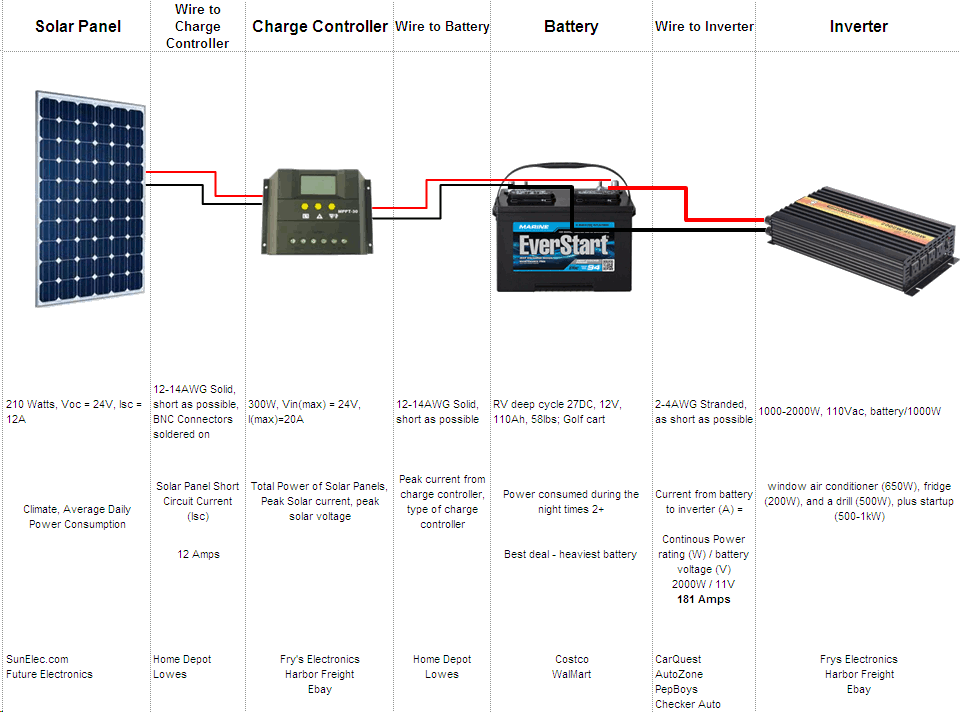

EzPowerPlant Design and
Wiring Schematics
ezPowerPlant™
easy - efficient - quiet - affordable
portable electric generator
to order call
800-773-6295
